Our Work

Membrane Roofing Projects

A selection of completed work — TPO membrane installations, gutter and parapet relining, liquid membrane overlays and full roof replacements. All photos are from our own jobs.

Request a Quote

Project Details

Commercial Membrane Roof with Skylights

Project type
Commercial membrane roofing
Location
New Zealand
Roof type
Commercial flat roof with glazed skylights and plant
Membrane system
Membrane roofing system

A commercial building in a town-centre block, with a row of glazed skylights, rooftop plant and several roof levels. Roofs like this are mostly detailing: every skylight, pipe and change of level has to be sealed into the membrane.

Scope of work

  • Membrane finished across the main roof and lower roof areas
  • Skylight upstands and frames detailed
  • Plant and pipe penetrations flashed
  • Edges and parapets terminated
Finished commercial membrane roof with glazed skylights at sunset

TPO Flat Roof

Project type
TPO roof installation
Location
New Zealand
Roof type
Flat roof
Membrane system
TPO membrane, hot-air welded

A flat roof finished in TPO membrane, welded at every lap so the roof behaves as one continuous sheet.

Scope of work

  • Substrate prepared
  • TPO membrane laid and hot-air welded
  • Edges and upstands finished
Flat roof finished in welded TPO membrane

TPO Membrane Gutter and Parapet Lining, Auckland

Project type
TPO membrane installation
Location
Auckland
Roof type
Parapet box gutter and flat roof edge
Membrane system
TPO membrane, hot-air welded

A coastal Auckland property where the box gutter and parapet detail were relined in white TPO membrane. Gutters are where most flat roofs fail first, so the membrane was welded as a continuous run and carried up the parapet walls rather than being joined at the corners.

Scope of work

  • Strip out and preparation of the existing gutter line
  • TPO membrane laid and hot-air welded through the gutter run
  • Membrane dressed up the parapet walls and terminated at the edges
  • Outlets and corners detailed to keep water moving to the downpipes
White TPO membrane box gutter installed on an Auckland roof overlooking the harbour
TPO membrane welded into a parapet gutter with detailed upstands
Completed TPO membrane gutter lining with welded seams and finished edges

Large-Area TPO Membrane Roof

Project type
TPO roof installation
Location
New Zealand
Roof type
Large flat / low-slope roof
Membrane system
TPO membrane, hot-air welded

A large single-plane roof finished in TPO membrane, installed while the building was enclosed under a temporary scaffold roof. Big open areas like this suit TPO well: the sheets come in wide rolls, so there are fewer seams to weld and fewer places for water to find a way in.

Scope of work

  • Substrate checked and prepared across the full roof area
  • TPO membrane rolled out, aligned and mechanically held down
  • All laps hot-air welded and probe-checked
  • Penetrations, upstands and edges flashed and sealed
Large TPO membrane roof installed under a temporary scaffold roof on a construction project

Liquid Membrane Applied Over an Existing TPO Roof

Project type
Liquid membrane overlay
Location
New Zealand
Roof type
Flat roof with existing TPO membrane
Membrane system
Liquid applied membrane over TPO

Where an existing membrane is still structurally sound but the surface and details need attention, a liquid applied membrane can be taken over the top. It cures into one continuous layer with no joins, which suits roofs with a lot of small details.

Scope of work

  • Existing TPO surface cleaned and assessed
  • Detail areas and problem seams treated first
  • Liquid membrane applied over the prepared surface
  • Seamless finish carried across upstands and penetrations
Liquid applied waterproofing membrane being coated over an existing TPO roof
Liquid membrane roof surface after application

Commercial Butynol Roof Replacement

Project type
Roof replacement
Location
New Zealand
Roof type
Large commercial flat roof
Membrane system
Butynol membrane

A weathered commercial roof taken back and re-covered. The before and after photos below show the same roof area at the start and on completion.

Scope of work

  • Removal of the failed existing roof covering
  • Substrate repaired and prepared
  • New Butynol membrane installed across the roof area
  • Edges, outlets and penetrations detailed

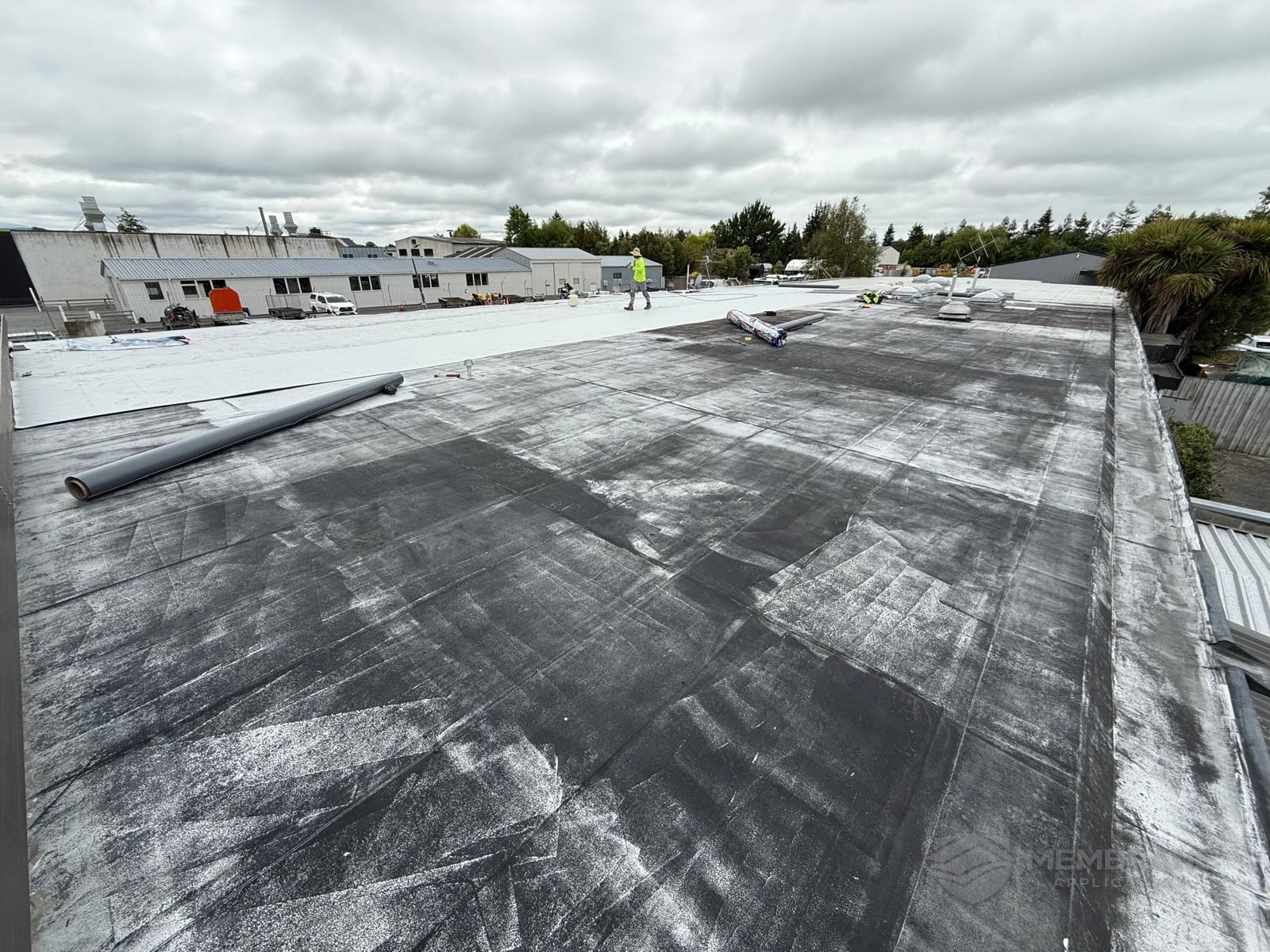

Before: Commercial roof replacement
Before

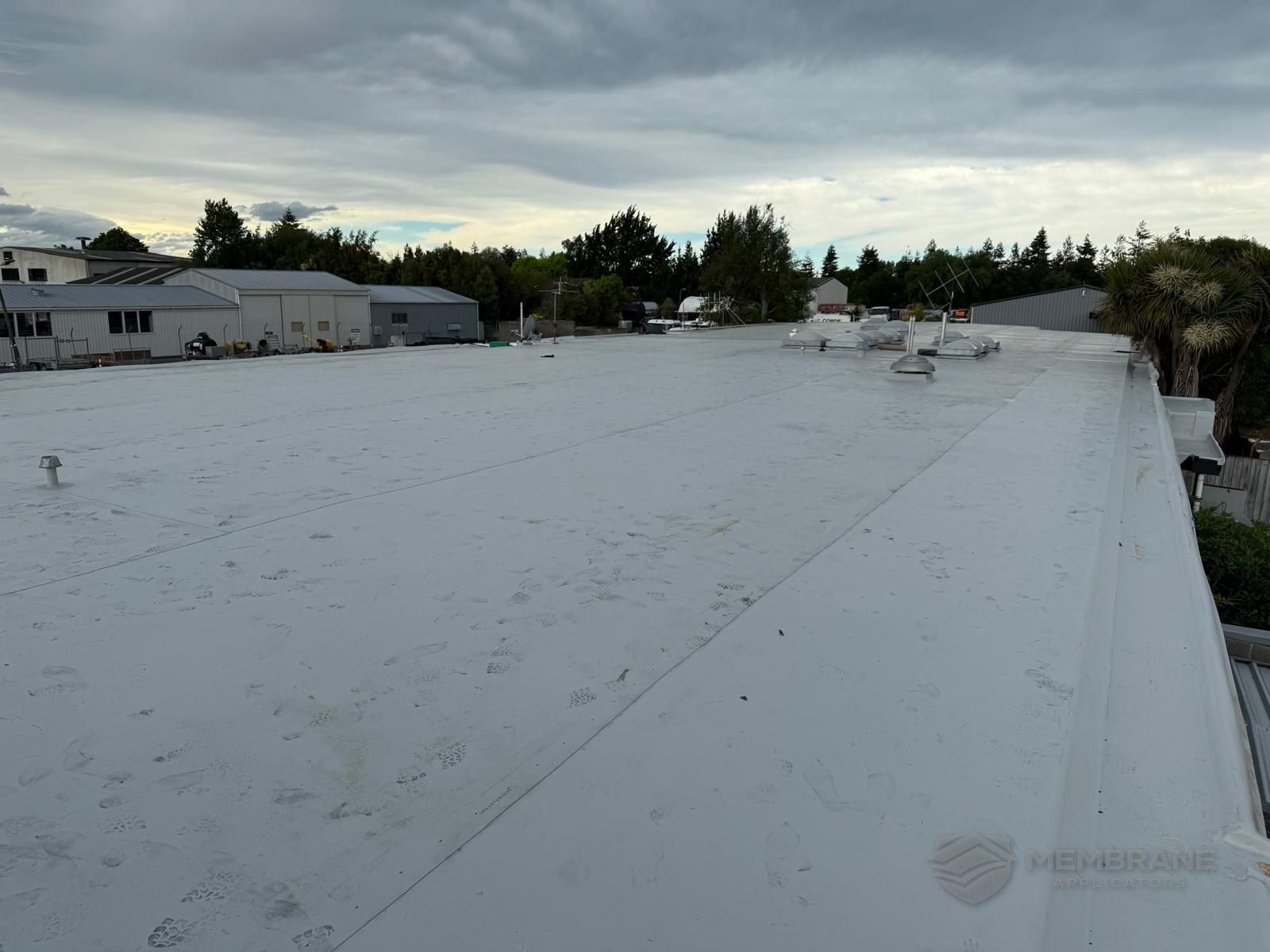

After: Commercial roof replacement
After

Butynol Roof Replacement

Project type
Roof replacement
Location
New Zealand
Roof type
Flat roof
Membrane system
Butynol membrane

An aged flat roof replaced with a new Butynol membrane. Where a roof has reached the end of its life, replacing the membrane is usually more economical over time than repeatedly patching it.

Scope of work

  • Existing membrane stripped back
  • Substrate checked and made good
  • New Butynol membrane laid and bonded
  • Upstands and terminations completed

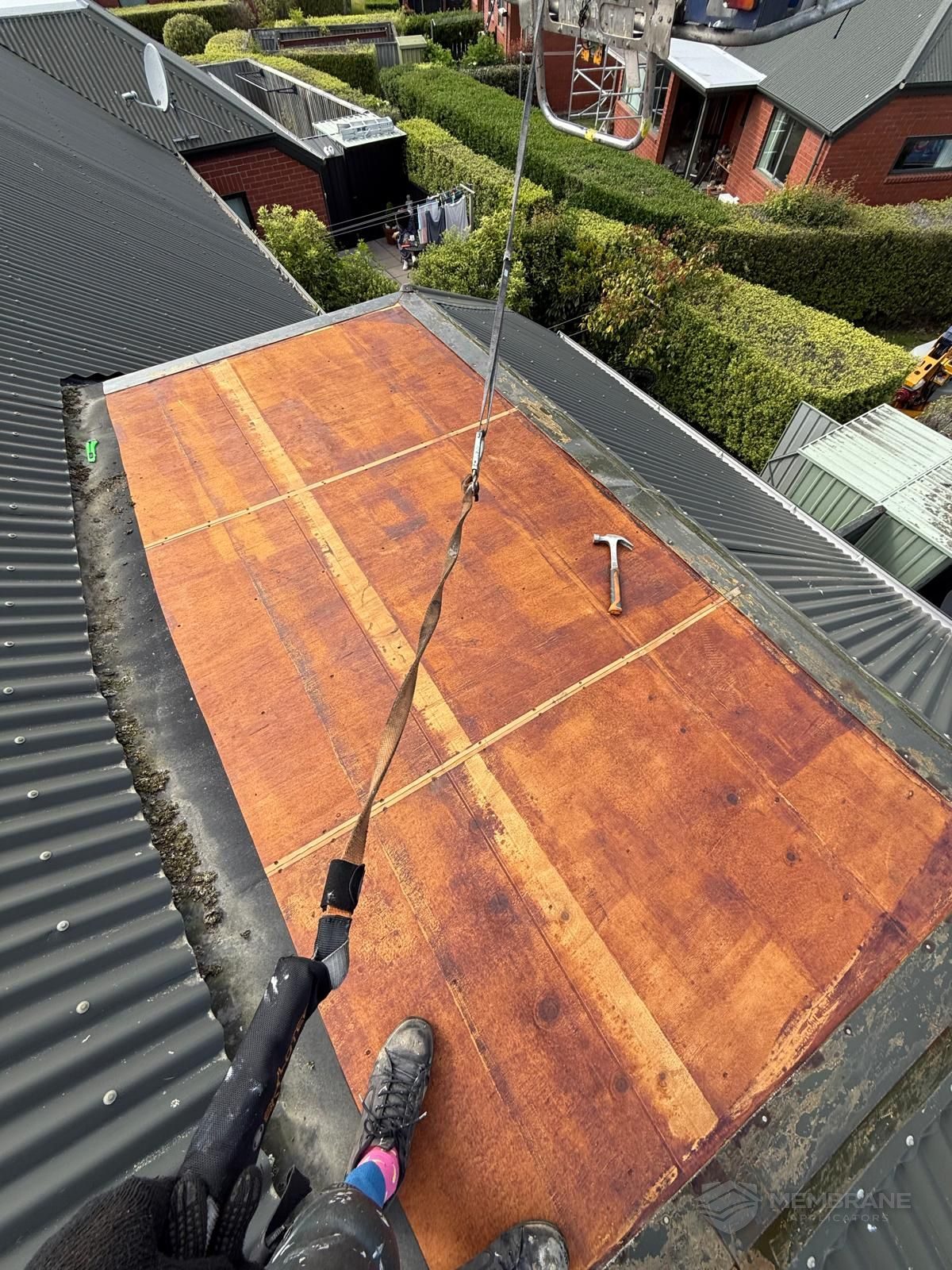

Before: Flat roof replacement
Before

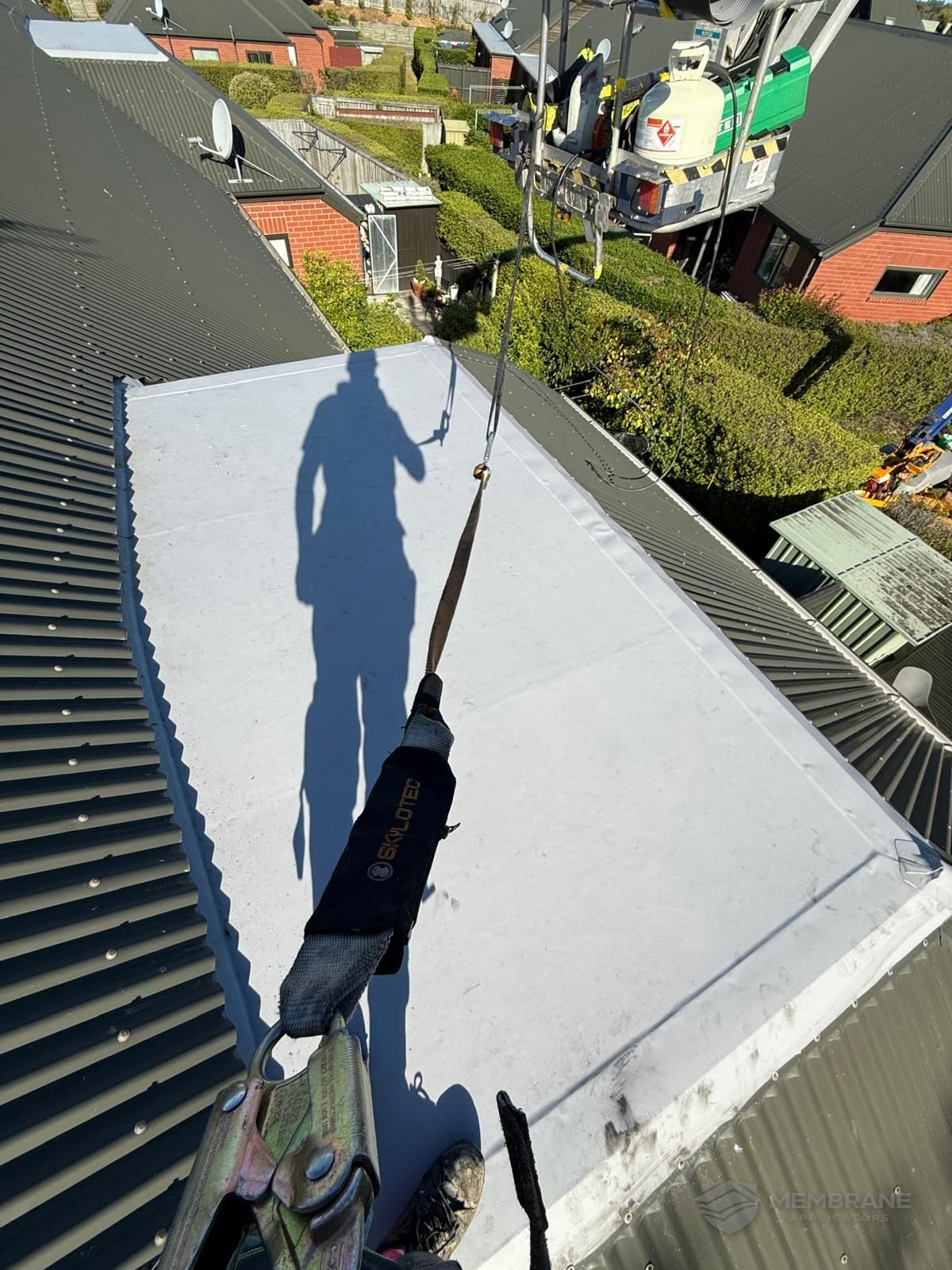

After: Flat roof replacement
After

More Work in Progress

We add projects to this page as jobs are completed and photographed. If you would like to see examples of work similar to your own roof, get in touch and ask us directly — we would rather show you something relevant than a stock photo.
